Sub-Zero PRO 48 Freezer Not Cooling: Condenser Fan & Inverter Repair

A real DNAA repair case in Napa, California.

A Sub-Zero PRO 48 is built to keep things cold—not to turn its machinery compartment into a sauna. On this Napa service call, the freezer had stopped cooling. The repair required more than a quick dust-off: we replaced the condenser fan and the freezer compressor inverter, then cleaned the condenser coil.

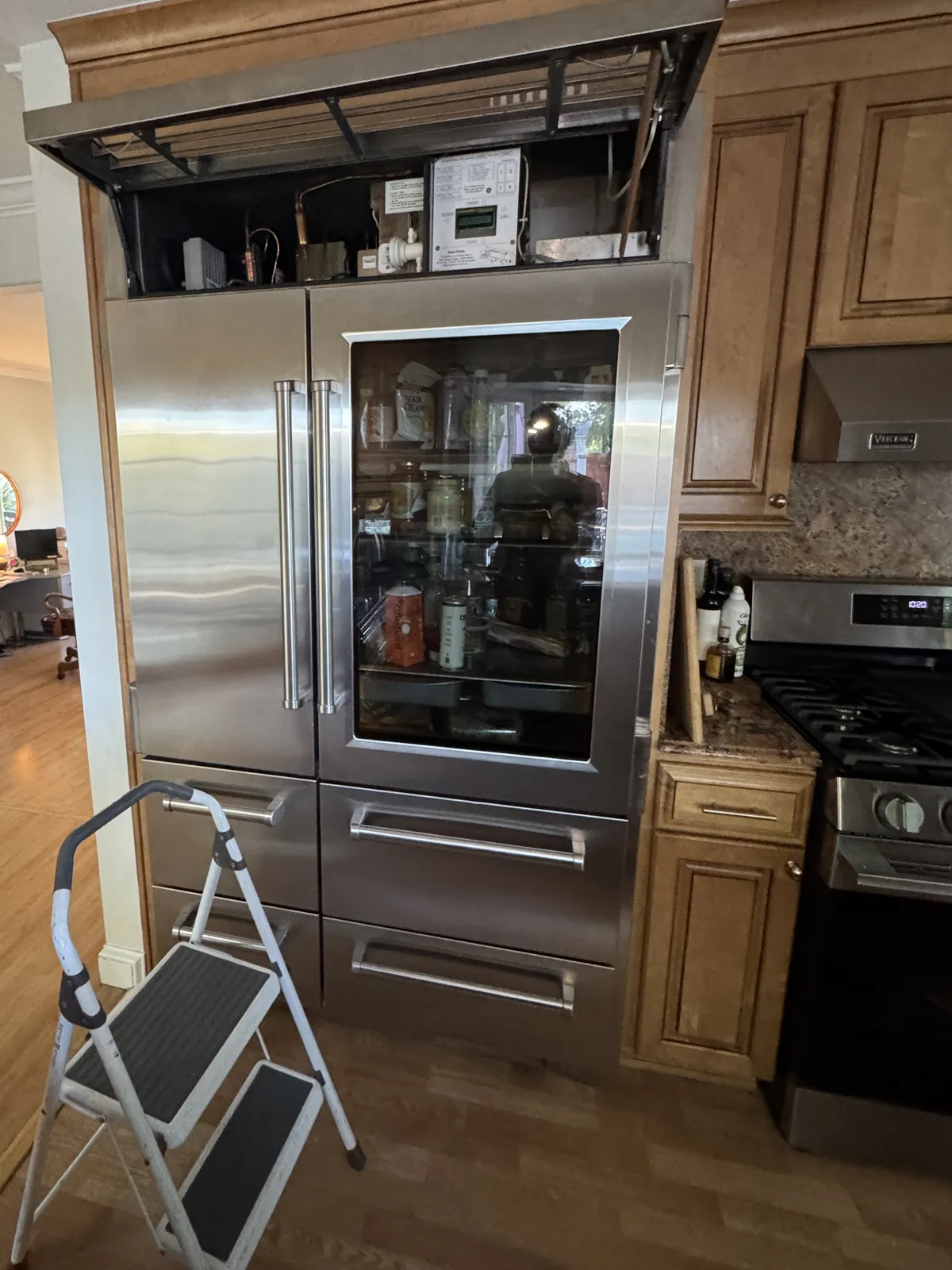

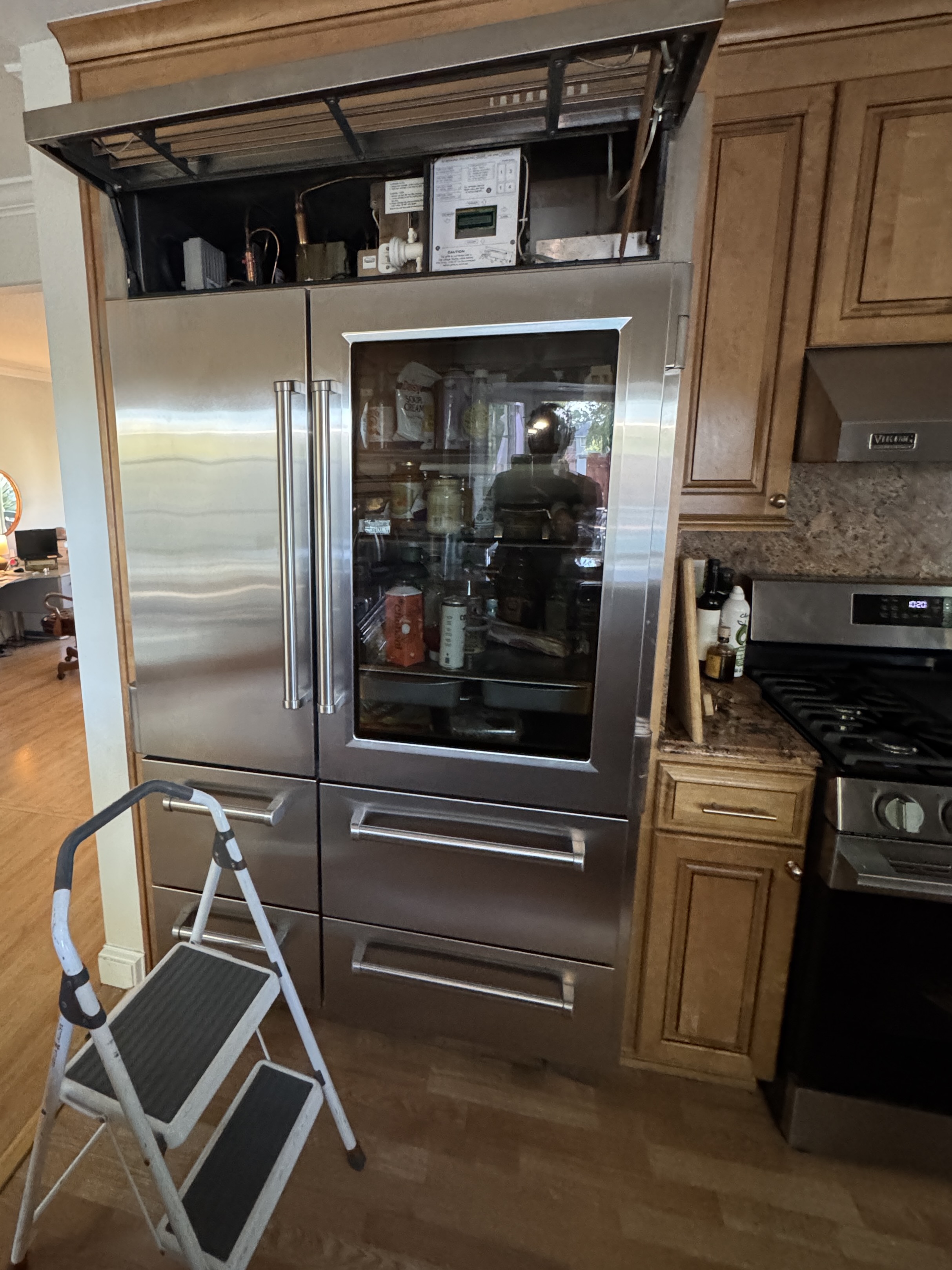

The Sub-Zero PRO 48 with its upper machinery compartment opened for service.

The symptom: a freezer that was no longer freezing

The freezer compressor was not running, and the compartment had warmed up. Our initial infrared spot check showed a surface reading of about 69.4°F. That helped document the warm condition, but finding the reason required checking the machinery above the cabinet—not simply adjusting the temperature setting.

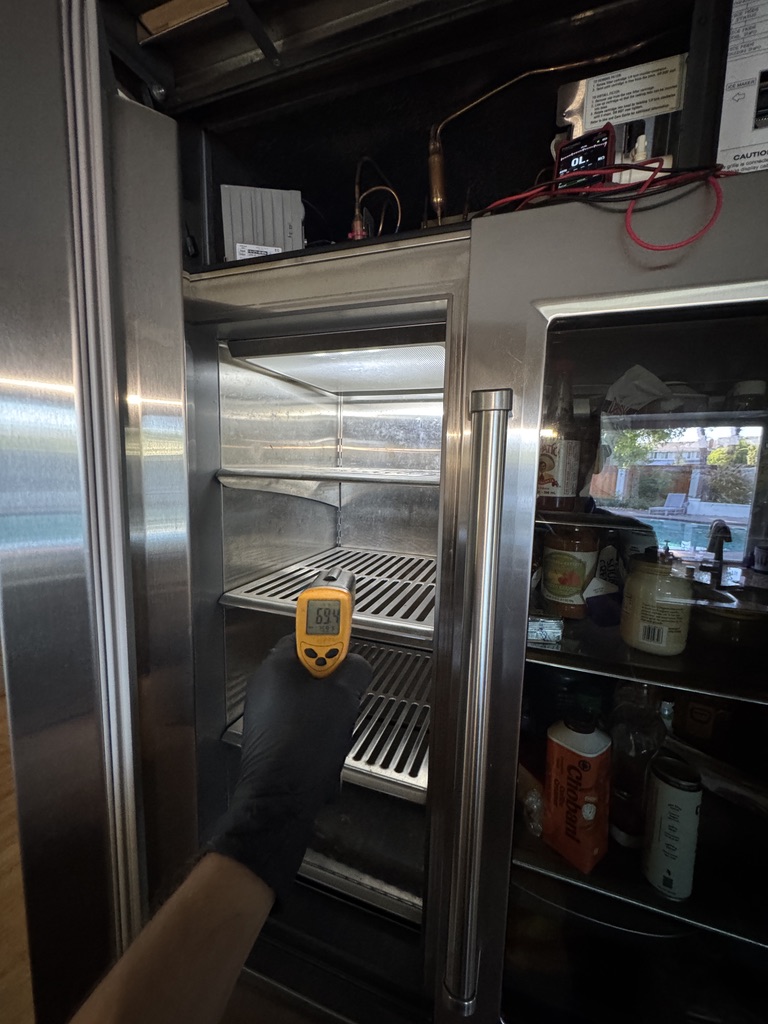

Initial surface-temperature spot check during diagnosis. An infrared reading is not a measurement of average compartment air temperature.

What we found: a seized condenser fan and a failed inverter

The condenser fan had seized. It would not turn and was completely stationary, so it provided no forced airflow through the machinery compartment. This area contains the condenser, compressors, and their inverter electronics. Without the fan running, heat is harder to remove and components can experience additional thermal stress.

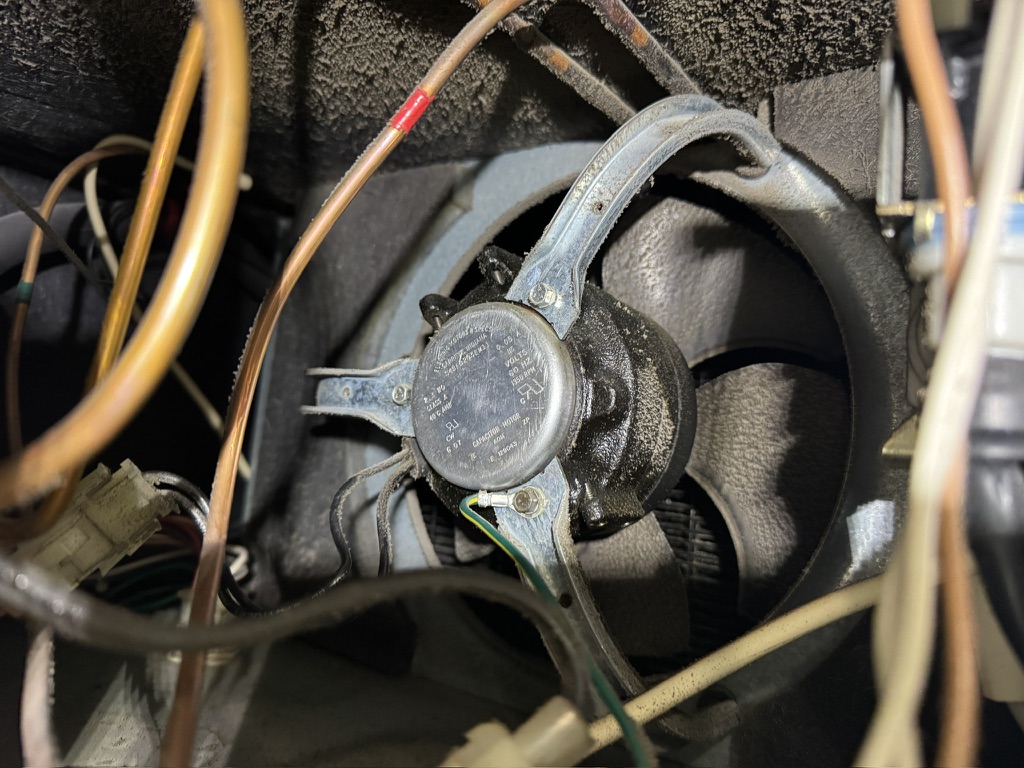

The failed condenser fan in the upper machinery compartment. The fan had seized and would not rotate.

We also diagnosed a failed inverter for the freezer compressor. The inverter controls the compressor motor; a failure in that control can leave the compressor unable to run. In this case, our assessment was that inadequate cooling in the machinery compartment contributed to the inverter failure. A seized fan and an inverter fault require separate diagnostic checks; one should not be assumed from the other.

A warm freezer does not automatically mean a bad compressor—or a bad inverter. Fan problems, controls, defrost issues, and sealed-system faults can produce overlapping symptoms. Replacing parts by guesswork is an expensive way to play refrigerator bingo.

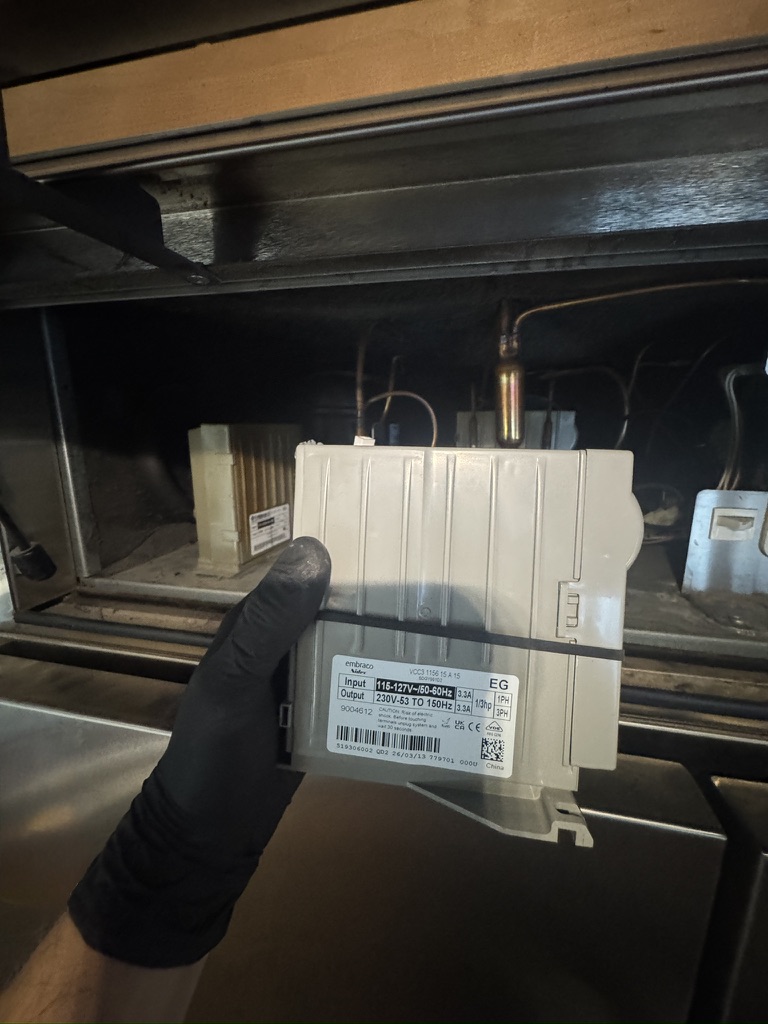

The compressor inverter module during the repair. Component selection must match the appliance and compressor.

The repair: address both the failed parts and the airflow

We replaced the condenser fan and the freezer compressor inverter. We also cleaned the condenser coil to improve heat transfer. The coil itself was cleaned, not replaced.

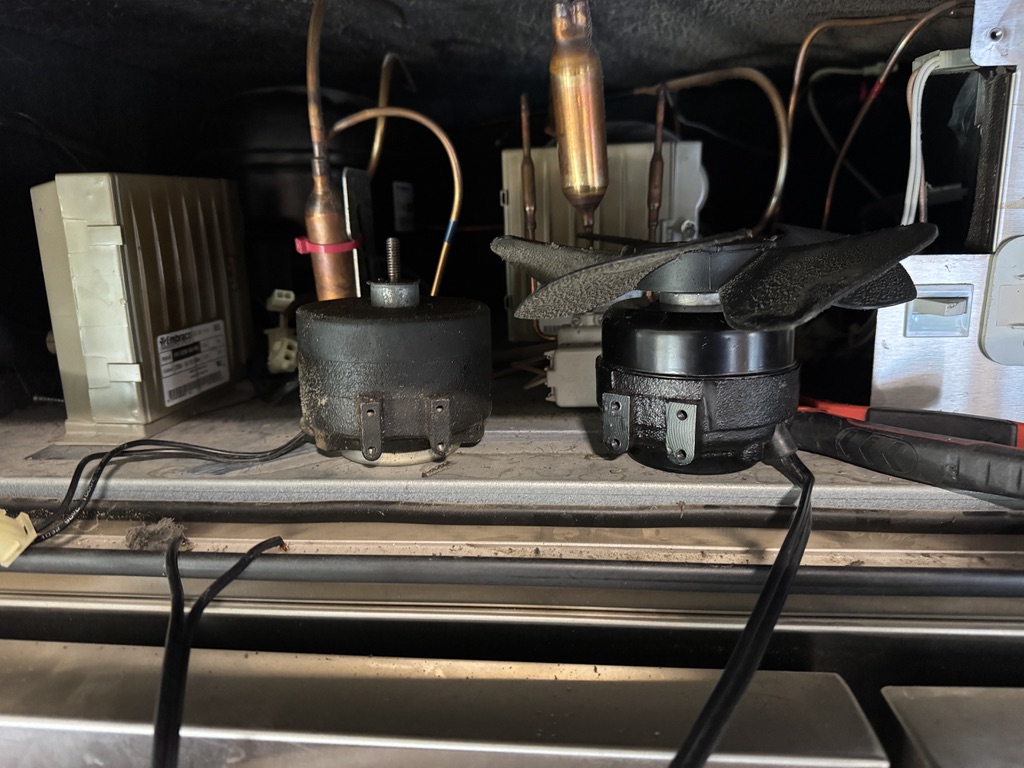

Condenser fan components during replacement.

Replacing only the inverter would not have addressed the fan problem. Cleaning only the coil would not have restored a failed inverter. Both the electrical fault and the airflow issue needed attention to put this freezer back to work.

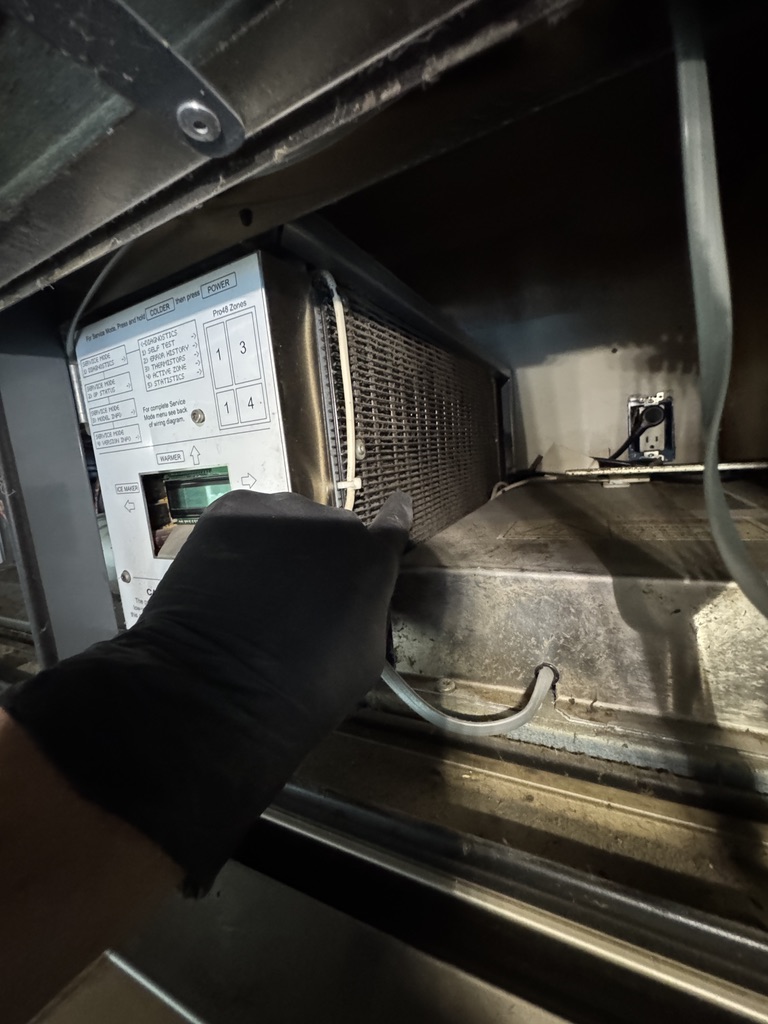

The condenser coil area accessed as part of the cleaning and service work.

The result: the compressor ran and cooling returned

After the fan and inverter replacement and condenser cleaning, operation was restored and the freezer began cooling again. The later photo shows an infrared surface reading of about 35.6°F during the cool-down period—a clear change from the initial warm reading, not the final stabilized freezer temperature.

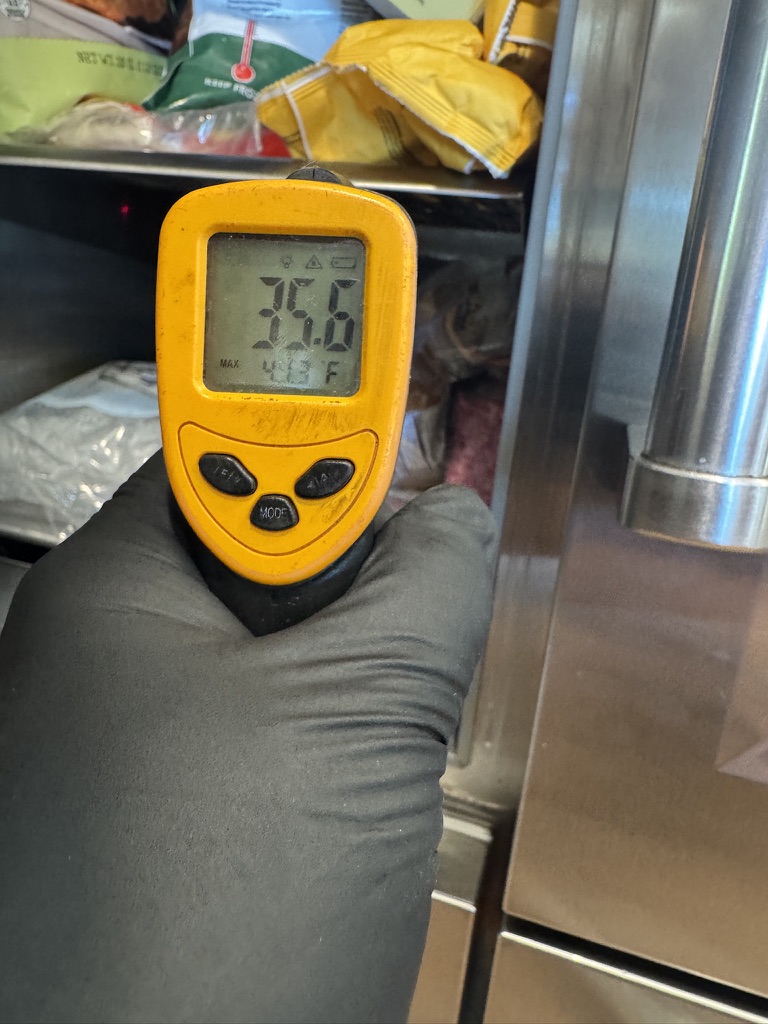

Cooling underway after repair. This spot reading documents progress, not the final freezer operating temperature.

How often should a Sub-Zero PRO 48 condenser be cleaned?

Use the maintenance instructions for your exact model. The legacy PRO 48 use-and-care guide specifies condenser cleaning every three to six months. Newer PRO-series instructions may specify a different interval, so the model-specific manual should guide the schedule. Dust and pet hair are good reasons to inspect the area sooner—not reasons to wait for cooling to fail.

For accessible routine cleaning, follow the manual: turn the appliance power off as instructed, use a soft brush and vacuum, and avoid damaging the condenser fins. Do not spray cleaners into the electrical compartment or dismantle fan and inverter components as a DIY maintenance step. If access is awkward or the unit is already struggling to cool, arrange professional service.

Manufacturer reference: Sub-Zero PRO 48 Use & Care Guide.

When weaker cooling deserves a service call

If temperatures rise, frozen items begin softening, unusual fan noises appear, or the appliance runs much longer than normal, do not assume it just needs a colder setting. Keep door openings brief, check that accessible ventilation openings are unobstructed, and arrange diagnosis promptly if cooling is not recovering.

A technician should evaluate condenser airflow and fan operation, then check compressor power, control signals, and inverter operation as appropriate. Inverters contain hazardous electrical components; checking one is not a homeowner troubleshooting step.

Frequently asked questions

Can a condenser fan problem affect freezer cooling?
Yes. A seized condenser fan provides no forced airflow, which can reduce heat rejection and increase temperatures around machinery. The exact effect depends on the appliance and fault, so the fan should be checked as part of a cooling diagnosis.

Does a dirty condenser always mean the inverter is damaged?
No. Dirt is a maintenance concern, not an inverter test. An inverter should be replaced only after the fault is diagnosed.

Should the compressor always be replaced with the inverter?
No. In this repair, the fan and freezer compressor inverter were replaced; a compressor replacement was not part of the reported repair. Diagnosis determines which parts are actually needed.
